125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting

Jinan Yinfan Electromechanical Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers

    Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers
    • Buy cheap 125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting from wholesalers

    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting

    Ask Lasest Price
    Brand Name : YFK
    Supply Ability : 5000 Piece/Pieces per Month
    Price : $315.00 - $340.00/pieces
    Delivery Time : 5-8 days
    Payment Terms : L/C,T/T
    • Product Details
    • Company Profile

    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting

    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting

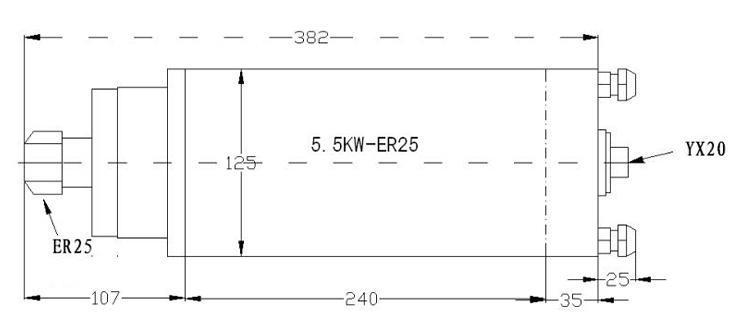

    Product parameter
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Brand
    YFK
    Diameter
    125mm
    Model
    GDZ-125-5.5
    Speed
    24000rpm
    Power
    5.5KW
    Maximum Torque
    2.19Nm
    Voltage
    220V/380V
    Weight
    23Kg
    Current
    16A/12A
    Collect
    ER25
    Frequency
    400HZ
    Cooling system
    Water cooling
    Product details
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Product advantage
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Application
    Widely used in integrated furniture, cabinet, wardrobe, woodwork processing, rosewood, solid wood and other manufacturing
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Tips
    The spindle motor of woodworking engraving machine is an important component of woodworking engraving machine. The advantages and disadvantages of the spindle motor directly affect the processing speed and accuracy of the engraving machine. How to select high-quality spindle motor is very important. The main points of woodworking engraving machine spindle selection for the reference of users: 1. If we pursue the efficiency of woodworking engraving machine, we should not only have a high speed, but also a large amount of knives. 2. Whether the spindle motor of woodworking engraving machine adopts high-precision bearings or not, if it does not use high-precision bearings, the performance is that the spindle motor overheated after long-term high-speed rotation, which affects the service life of the spindle motor. 3. Whether the spindle of woodworking engraving machine rotates at different speeds, especially at high speeds, the sound is uniform and harmonious. 4. Whether the radial force of the principal axis of woodworking engraving machine is applied. The main reference is whether the material with hard texture can be cut at high speed. Some spindle motors can only cut hard materials at very low speed, otherwise the performance of the motor will be seriously lost, which will affect the accuracy of the spindle after a period of time, or even cause faults.
    Note
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Packing and shipping
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Company Profile
    125mm Diameter 5.5kW Water Cooled Spindle Motor for Wood and Long-lasting
    Jinan Yinfan Electromechanical Equipment Co., Ltd. is located in Jinan City. It was established in October 2008. It is a high-tech enterprise specializing in R&D, production,serves in the engraving equipment industry. Our main products include water spindle ,air cooled spindle,ATC spindle, our products are widely used in many fields ,such as precise carving ,CNC drilling and milling machine. Jinan Yinfan's own brand (Yinfan) (GDZ) , and its products sell in Vietnam, Brazil, Pakistan, India, Algeria and other countries. The products are in stock all year .it satisfied with various CNC engraving machine and provide free technical support for all engraving industry. Welcome the friends from all over the world to cooperate with us.
